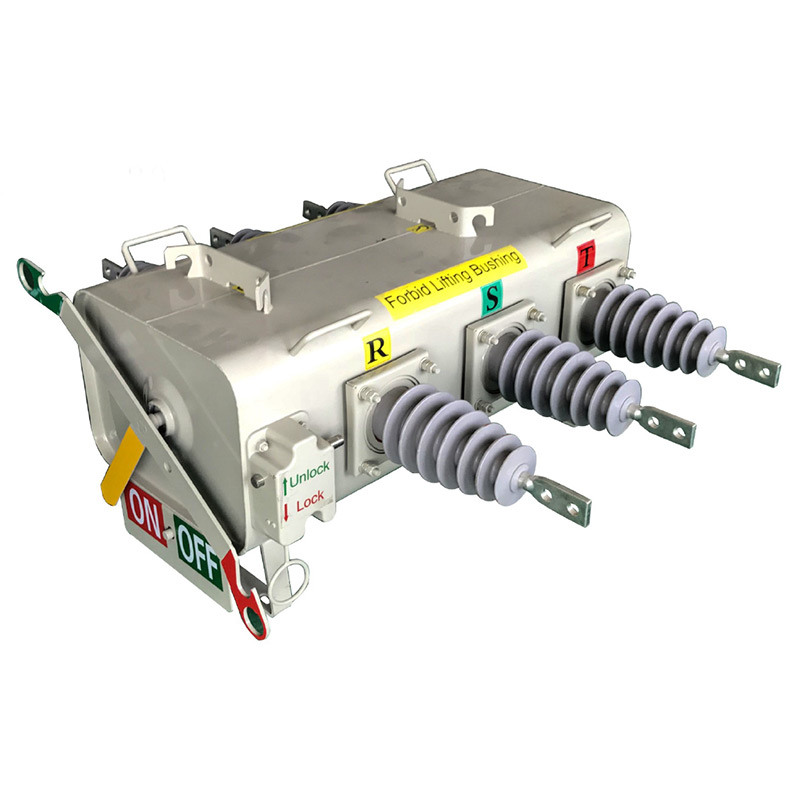

Outdoor post SF6 insulated load break switch

PGS pole mounted load break switch is used for breaking rated voltage 12/24/36kV,rated current 630A、1250A 50/60Hzpower distribution system, closing load current and over load current of power system, it could separate automatically track sections of power distribution which faults occur.

The switch is matched with electronic controller which is with the latest technology. The switch has manual,motor, remote operation modes. The electronic controller would be installed inside the stainless steel box, so it could be used in various climate conditions. Besides that, the wire/wireless modem installed inside control box could achieve remote monitoring and controlling. It's easy and convenient for installation the switch on pole, and that could reduce the execution cost.

1、Overview

    Column installed insulation load switch, typePSS4-24/T630-16,is suitable for the rated voltage 12/24/40.5kV,rated current 400A、630A、50/60Hz power grid open circuit、load current in closed Power system、overload curren. This load switch can separate those broken distribution line automatically.

With the latest technology, it has the newest electronic controller.The switch can be used by manual operation, electric operation and operation from a long distance. Electronic controller is installed in a stainless steel cabinet which is suitable for using under all kinds of climatic conditions. In addition, there are some wired and wireless modem installed in the cabinet through which it can realize the remote monitoring and control. Simple installation on column is convenient, fast, and also can reduce the construction cost.

2、The standard conditions of use

    operating conditions for SF6 gas load switch to adapt to:

2.1  Ambient temperature

2.1.1 Ambient air temperature: upper limit +50 ° C, lower limit of -40 ℃.

2.1.2 Relative Humidity: 100%

2.2 Elevation does not exceed 1000m;2000m;3000m;5000m

2.3 The pressure does not exceed 700pa (equivalent to wind speed of 34m / s).

2.4 Earthquake intensity: 8 degrees.

2.5 Installation site: No fire, no explosion hazards, no chemical corrosion and recurrent severe vibration.

2.6 Pollution class: class III, class IV.

3   FeaturesFeatures

3.1 SF6 gas-insulated

3.1.1 SF6 gas is a kind of nontoxic, nonflammable and electrical insulating gas. It has the excellent characteristic of arc extinction.

3.2 Drivepipe with large diversity

3.2.1 In addition to the standard ceramic drivepipe, we can also provide a variety of solutions, including rubber insulators used in the epoxy resin filling equipment

3.3 Visible open / closed status

3.3.1 It is easy to see the main contact position indicator which is color-coded just standing on the ground (Green – off; red – closed). The indicator is directly connected with the main contacts of the drive shaft assembly to ensure accurate display of contact states.

3.4 Quick operation

3.4.1 operating mechanism with spring energy to ensure a quick closing and opening operation (less than 100 milliseconds).

3.5 Can realize remote control

3.5.1 It is equipped with electronic controller, fit for in situ operation as well as FTU interface console operation.

3.6 Rugged switch

3.6.1 The switch is made of proven durable, corrosion-resistant materials (special used in warships 304L stainless steel plate)which ensures that there is a very long service life (30 years), and can be implement a series of operations.It has the ideal characteristics as a column equipment.

3.7 Standard

3.7.1 Each switch before leaving the factory has been filled with SF6 gas, sealed, and test according to IEC60265-1 (1988), GB40.504-1990 standard.

4   Type and Rating

4.1   Product mode

PSS4-24/T630-16

4.3   Types of PSS4-24/T630-16

Figure 1) ceramic bushing – molded cable outlet

Figure 2) rubber split bushing – molded cable outlet
Figure 3) rubber   bushing – terminal outlet

Figure 4)with a lightning arrester

No.NameUnitData
Product modePSS4-24/T630-16-12PSS4-24/T630-16-24PSS4-24/T630-16-40.5
1Rated voltage                                                           kV122440.5
6/10/1115/17.5/2033/36/40.5
2Rated frequencyHz50/6050/6050/60
3Rated insulation level(The filling SF6 gas 0.07Mpa  / 20 ° C)(Lightning impulse withstand voltage)relativelykV75125185
Fracture85145215
Power frequency withstand voltage  1minrelativelykV426495
Fracture5079110
4Insulation level of zero gauge pressure.  Power frequency withstand voltage 1min      kV30
RP-pressure 1min         30
The highest phase voltage 5min  9
5Rated current                                                         A630(400)630(400)630(400)
6Rated breaking load current (0.07Mpa / 20 ° C)                                      A630(400)630(400)630(400)
7breaking current under zero gauge pressure                             A630(400)630(400)630(400)
8peak withstand current                                kA505050
9Rated short time making current                                               kA505050
11rated short time withstand current                                               KA/s20/420/420/4
12rated cable charging breaking currentA252525
13rated line charging breaking currentA161616
14rated closed-loop breaking currentA630(400)630(400)630(400)
15exciting currentA212121
16rated current breaking timesTimes≥400≥400≥400
17rated working pressure                                                MPa0.050.070.25
18Per-phase main circuit resistanceμΩ≤150≤150≤150
19relative gas leakage rate year≤1%≤1%≤1%
20SF6 gas moisture contentFactory transfer of valueppm≤150≤150≤150
Switch running valueppm≤300≤300≤300
21operation of echanical stabilitytimes600060006000
22rated operating voltage and auxiliary circuits rated voltage  VDC 220/ 110/48/24DC 220/ 110/48/24DC 220/ 110/48/24
AC 220/110AC 220/110AC 220/110
23WeightType Mkg115125135
Type A135145155
24institutions boxes and controller protection classIP44  IP54
25Type of MountingThe lifting type (suspended)/block (horizontal)
