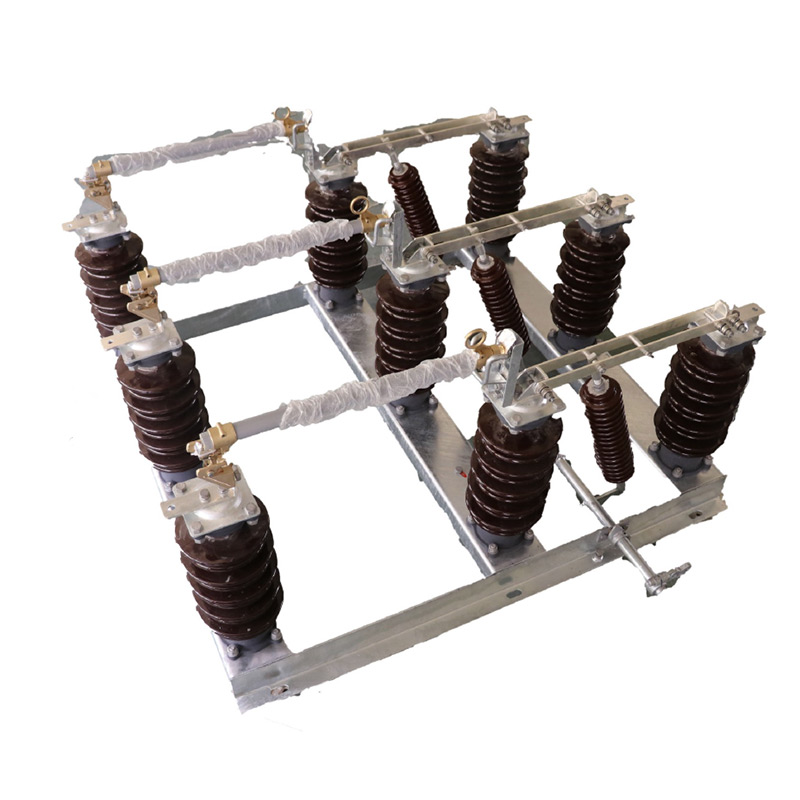

GWR□-12(40.5)/100 Outdoor AC High Voltage Disconnect Switch (fuse)

GWR□-12(40.5)/100 outdoor AC. high voltage fused type disconnect switch
(disconnect switch for short) is used in electric power system with rated frequency
50/60Hz, rated voltage 12(40.5)kV.

Its main for making or breaking circuit under
line supplying voltage in outdoor high voltage distribution system equipments.
Thereof anti-pollution type disconnect switch especial used in serious polluted area.

Ambient condition

  1. Altitude:    1000m;
  2. Ambient temperature: +50 ~-30  ;
  3. Wind speed:    35m/s;
  4. Earthquake intensity:    8 degree;
  5. Air pollution: IV;
  6. Ice thickness:    10mm;
  7. Applicable occasions of normal type switch should free from chemistry aggradation, dust and other volatile & caustic thing.

Model

Structure feature

Disconnect s witch is compos ed of fuse components, frame and operating insulator, fixed contact, contact blade and linkage spring mechanism.

  1. Cutout fuse assemble: mainly combine with upper, down movable and fixed contact, ar c extinguis h bushing, in sulator and mou nt support pa rts, during normal work, the fuse linking the moving joint of the arc extinguish bushing with movable contactor, the arc extinguish bushing is at closed position under the pressure of the fixed contactor.
  2. Frame: Base is bended from steel sheet, axis with pulling arm cross through frame center. Holes drilled on base are used for fixing post insulator.
  3. Post and operating insulator: anti-erode post insulator.
  4. Fixed contactor: contact blade made of red copper plate, fixed on post insulator and extended level plane end as for connecting wire and upside of curve connected both side reliable with contacting blade.
  5. Contact bl ade: it’s made of two rectangle section red copper plates, both ends of contact blade attached with spiral sp ring to adjust contacting pressure.

Switch could be operated combined with CS   mechanism vertical mounting on outdoor double electric poles.

Technical specification

No.ItemUnitData
1Rated voltagekV1240.5
2Rated currentA100100
3Rated frequencyHz50/6050/60
4Maximum breaking currentkA55
5Main circuit resistance 150150
61min. PF withstand voltage (dry)  phase to phase/earth across open contacts    kV42/4895/115
71min. PF withstand voltage (wet)3085
8Lightning impulse withstand voltage95/110185/215
  9  Mechanical lifedisconnect switch  Times20002000
fuse cutout300300

Outline dimension
