Ambient condition
- Altitude: ≤1000m;
- Ambient temperature: -25℃ ~+40℃ ;
- Wind speed: ≤35m/s;
- Earthquake intensity: ≤8 degree;
- Applicable occasions of normal type switch should free from chemistry aggradation, dust and other volatile & caustic thing.
Technical specification
| Model | Rated voltage (kV) | Rated current (A) | 4s short-time withstand current(kV) | Withstand current (peak) | Rated insulation level | ||
| Lightning impulse | Power frequency withstand voltage(1min) | ||||||
| Phase to earth (kV) | Across open contacts (kV) | Phase to earth wet (kV) | |||||
| GW9-12/400 GW9-12W/400 | 12 | 400 | 12.5 | 31.5 | |||
| GW9-12/630 GW9-12W/630 | 12 | 630 | 20 | 50 | 75 | 85 | 34 |
| GW9-12W/1000 | 12 | 1000 | 20 | 50 | |||
Structure feature

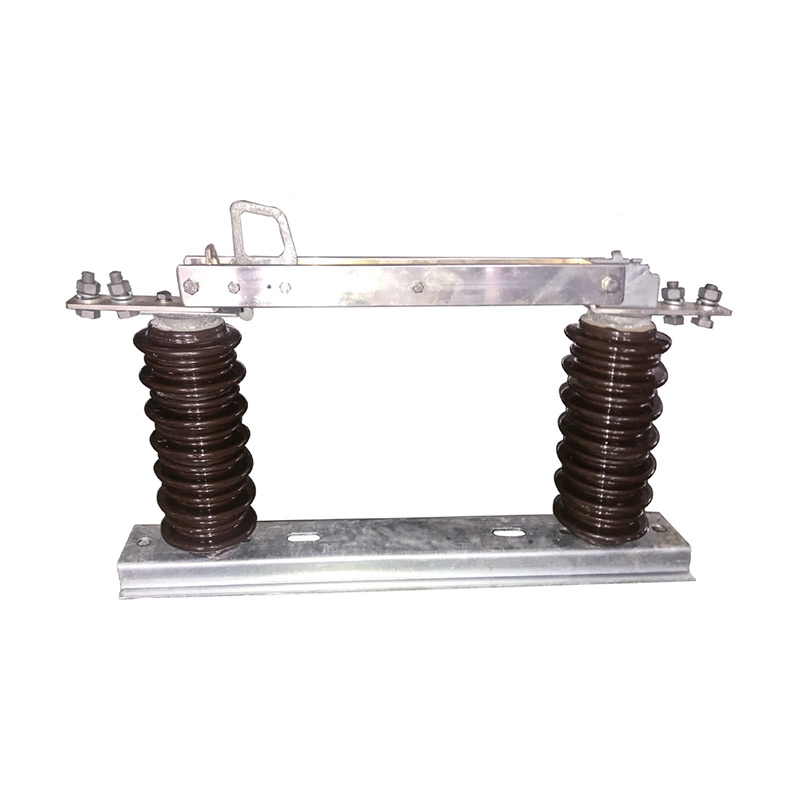

GW9-12(W) disconnect switch is single type.
- This series switch have normal and anti-pollute two difference models, it composed of frame,support insulator, with power part
and operating mechanism. - Each pole have two pieces blade, there is press spring near the contactor base and have adjusted nut to keep good contact press,
there is a support structure on the blade, it can be locked after closing, so it will not be closing b y itself u nder any condition,
under normal or short-circuit condition, it can ensure the reliable performance of dynamic and thermic stability.
Outline dimension
