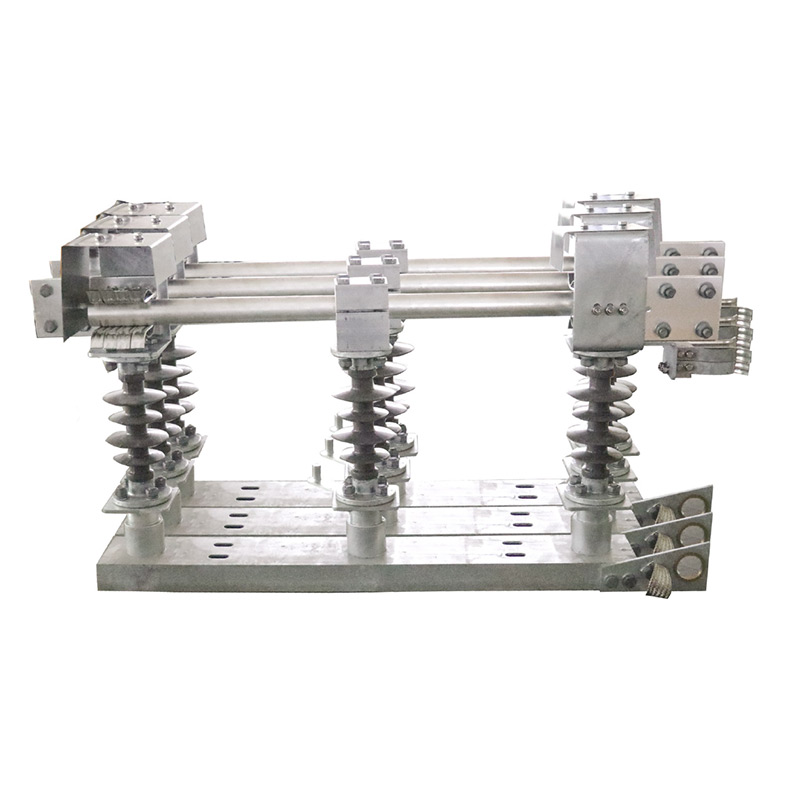

GW-4-12 Outdoor HV Disconnect Switch

GW4-12(40.5)outdoor AC high voltage disconnect switch (disconnect switch
for short) is used to open and close circuit with voltage but no-load 50/60Hz,
12(40.5)kV power system. It accords with standards of IEC129-1984 AC
Disconnect Switch and Earthing Switch and GB1985 and other relative standards.

Ambient condition

  1. Altitude: ≤3000m;
  2. Ambient temperature: -25℃ ~+40℃ ;
  3. Wind speed: ≤35m/s;
  4. Pollution degree: III;
  5. Earthquake intensity: ≤8 degree;
  6. Applicable occasions should free from inflammable, explosives, causticgas

Model

Structure feature

This disconnect switch consists of pedestal, insulating brace, electric material and operating mechanism. There are two braces
on each pole, and electric blade is installed on the top of each brace and the connection point of the two blades is between the
two braces. With the driving of operating mechanism, the two blades can rotate horizontally ninety degrees to close. We can
connect three single-pole disconnect switches into a linkage three-pole switch through interlink rod. This disconnect switch can
be matched with CS11 type or CS17 type manual mechanism, thereinto, CS17 be used in disconnect switch with earthing fitting.
(motor mechanism can be installed according to user’s requirement), Reasonable structure, fle xible operating; conv enien t
installation, able to use single-pole or three-pole; wide distance of contact, safe and reliable insulating. The earthing type is
flexible according to user’s requirement, single earthing dual earthing or without earthing can be chosen.

Technical specification

Model Rate voltage(kV) Rate current(A) Withstand current(kA) 4s short-time withstand current(kA)
GW4-12 12 200 40 16
400 50 20
630 50 20
1000 63 25
1250 63 25
GW4-40.5 GW4-40.5D 40.5 400 50 20
630 50 20
1000 63 25
1250 80 31.5

Outline dimension

Model Rate voltage(kV) Rate current(A) Withstand current(kA) 4s short-time withstand current(kA)
GW4-12 12 200 40 16
400 50 20
630 50 20
1000 63 25
1250 63 25
GW4-40.5
GW4-40.5D
40.5 400 50 20
630 50 20
1000 63 25
1250 80 31.5
