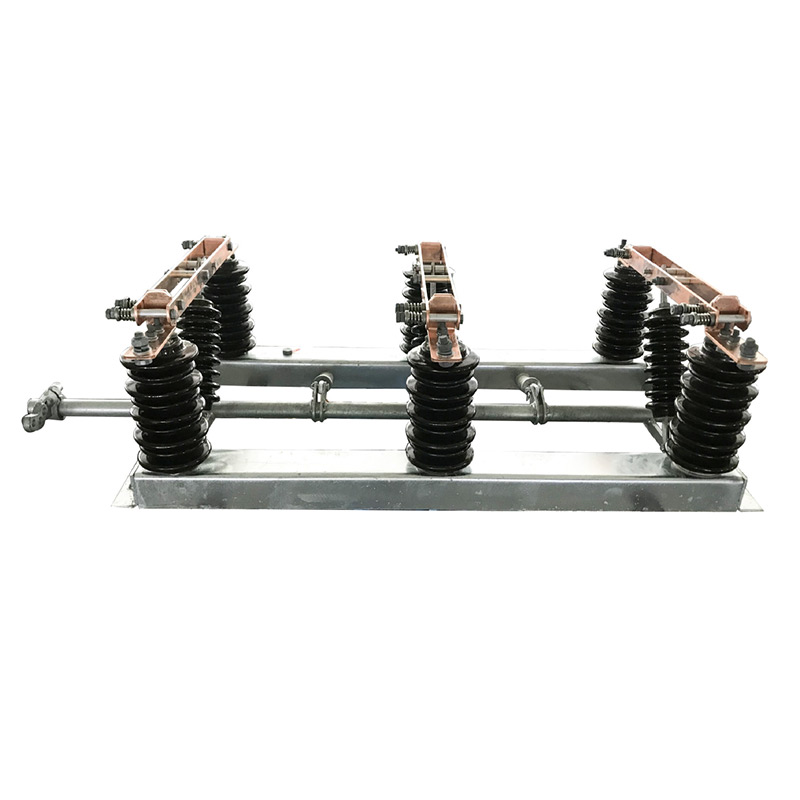

GW□-12(40.5) Outdoor HV Disconnect Switch

Ambient condition

  1. Altitude:≤3000m ;
  2. Ambient temperature: -30 ~+40  ;
  3. Wind speed:≤35m/s;
  4. Air pollution: ≤IV;
  5. Earthquake intensity: ≤8 degree;
  6. Ice thickness:≤10mm.

Model

Technical specification

No.ItemUnitData
1Rated voltagekV12,40.5
2Rated currentA630
3Rated power frequencyHz50/60
4Rated peak withstand currentkA50, 63
5Rated short-time withstand currentkA20, 25
6Rated short-time withstand current durations4
7Main loop resistance 12kV 9040.5kV 100
81min(dry) power frequency withstand voltagephase to phase phase to earth across open contacts 42/4895/115
91min(wet) power frequency withstand voltagekV3085
10lightning impulse withstand voltage (peak) 75/85185/215
11Mechanical life Times2000

Structure feature

This disconnect switch consists of frame, operating insulating, static contactor, blade, linkage spring mechanism, etc. Frame: 5mm chickness bended armor plate, there are holes on the frame to fixed post insulator.

Post and operating insulator: adopt ZS-12, 40.5 series outdoor clubbed post insulator, The mini resist bend load is 4000N. Static contactor: it is made of violet copperplate and fixed on post insulator.

Blade: it is made of rectangular violet copperplate, there is an press-spring to adjust press. The switch vertical or horizontal installed in outdoor with CS□mechanism.

Popular Products

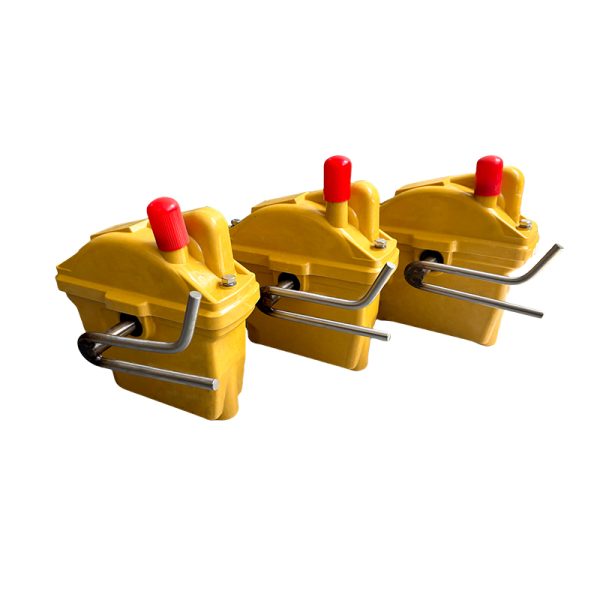

  • SFAI (Air Type)(Smart Fault Automatic Interrupter)

    ORC unit of the new design, which solve the mobility caused by ageing, provides the reliable circuit interruption performance without external arc of flame and completely prevents the switch from the arc caused by switching the load currents 400/ 630A at rated voltage

    Learn More

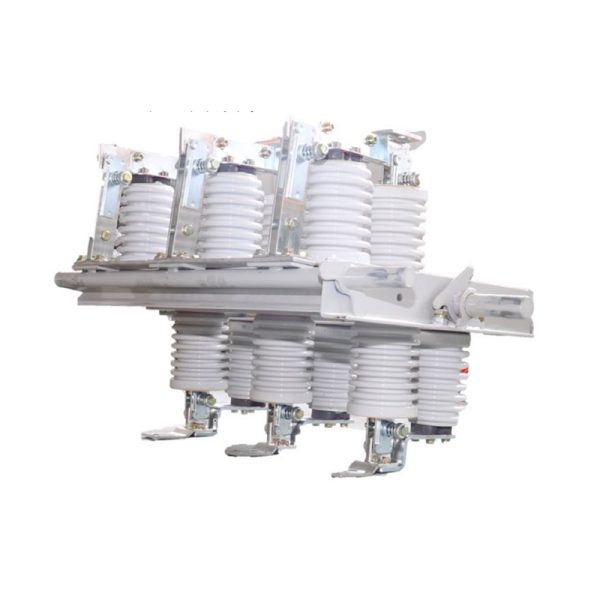

  • GN30-12(D)Rotary Indoor AC HV Disconnect Switch
