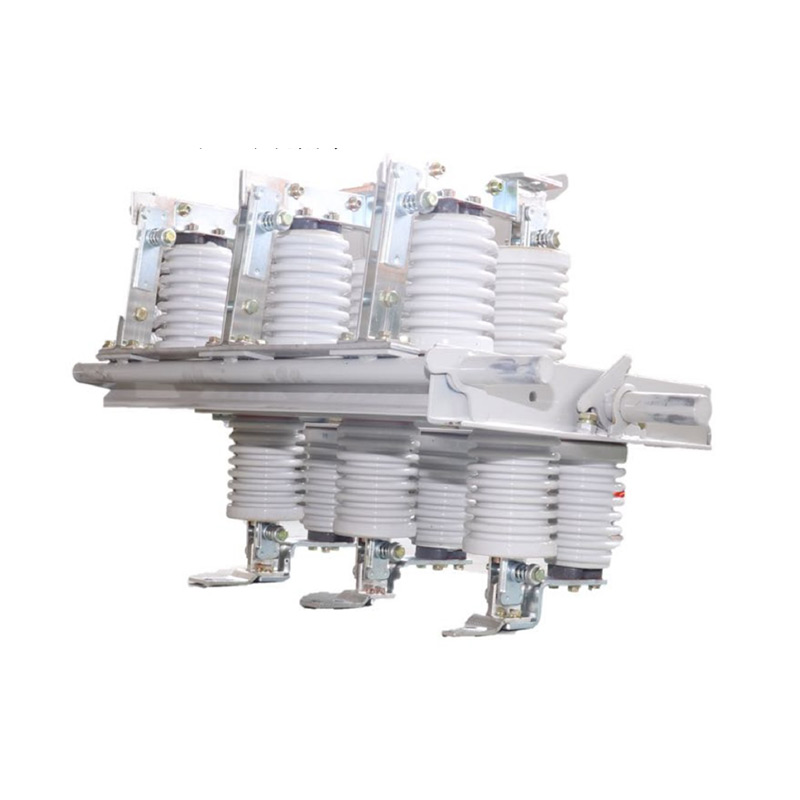

GN30-12(D)Rotary Indoor AC HV Disconnect Switch

GN30-12(D) disconnec t switch is an indoor electric apparatus of rated voltage
12kV, three-phase AC50/60Hz. It is used to make break and transfer current
for HV ele ctric apparatus under situations with voltage and no-load.

The switch
applies rotary moving contact which is mounted on the switchgear easily. It
adopts wall through installation as well.

Ambient condition

  1. Altitude: ≤1000m;
  2. Ambient temperature: -25℃ ~+40℃ ;
  3. Relative humidity: daily average ≤95% , monthly average ≤90% ;
  4. Earthquake intensity: ≤8 degree;
  5. Applicable occasions should free from inflammables, explosives, corrosives
    and severe vibration.

Product feature

  1. Scientific design and innovative structure.
  2. Contacting points distribute on two planes, small operating moment, and release pressure to small and easy adjustment.
  3. Improved driving and conducting part.
  4. Column moving contact that can decrease operating strength and ensure reliability of circuit conduction.

Technical specification

Data                  Model and specification ItemGN30-12/400-12.5GN30-12/630-20GN30-12/1000-31.5GN30-12/1250-31.5GN30-12/(1600-3150)-40
GN30-12D/400-12.5GN30-12D/630-20GN30-12D/1000-31.5GN30-12D/1250-31.5GN30-12D/(1600-3150)-40
Rated voltage(kV)12
Rated current(A)400630100012501600~3150
Rated short-time withstand current(kA)12.52031.540
Rated short-circuit duration(s)4
Rated peak withstand curren(kA)31.55080100
Rated insulating level1min. PF withstand voltage(kV)phase to phase/ to earth: 42, across open contacts: 49
Lightning impulse withstand voltage(kV)phase to phase/ to earth: 75, across open contacts: 85

Outline Dimension
