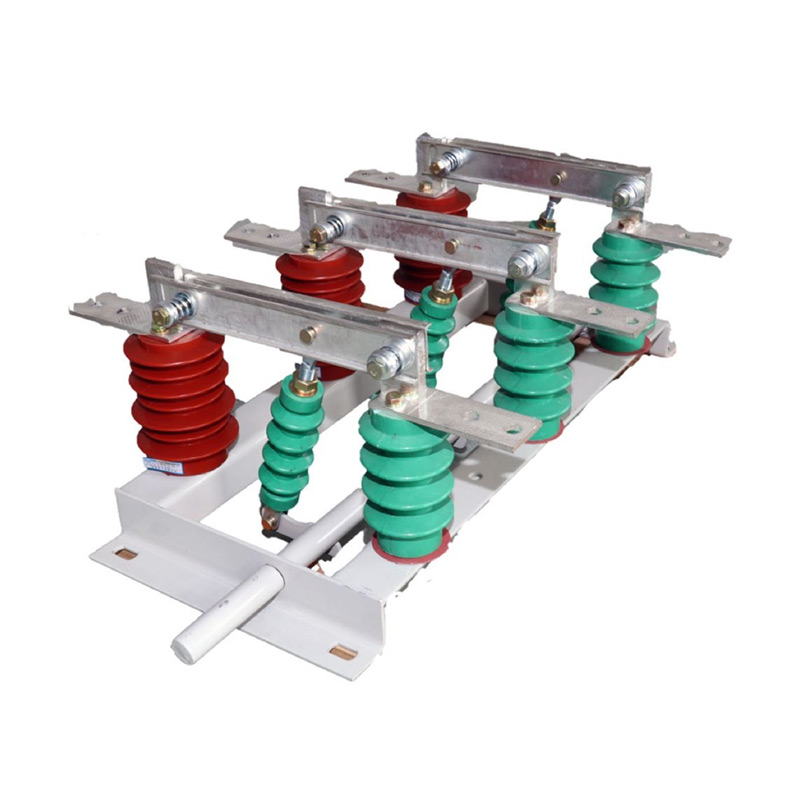

GN19-12(C)Indoor AC High Voltage Disconnect Switch

GN19-12(C) indoor HV disconnect switch applies to power system of rated voltage below 12kV,AC 50/60Hz. It is equipped with CS6-1 manual-operating mechanism and is used to break and make circuit under no-load.

There are additional pollution type, high-altitude type and electrified display.

Ambient condition

  1. Altitude: ≤1000m;
  2. Ambient temperature: -25℃ ~+40℃ ;
  3. Relative humidity: daily average ≤95% , monthly average ≤90% ;
  4. Earthquake intensity: ≤8 degree;
  5. Applicable occasions should free from inflammables, explosives, corrosives
    and severe vibration.

Model

Product feature

  1. Scientific design and simple structure.
  2. Large clearance between gaps.
  3. Small operating power and steady performance.

Technical specification

ModelRated voltage (kV)Rated current (A)Rated short-time withstand current(kA/4s)Rated peak withstand current(kA)
GN19-12/400-12.51240012.531.5
GN19-12/630-20126302050
GN19-12/1000-31.512100031.580
GN19-12/1250-31.512125031.580
GN19-12C/400-12.51240012.531.5
GN19-12C/630-20126302050
GN19-12C/1000-31.512100031.580
GN19-1C2/1250-31.512125031.580

Outline Dimension
