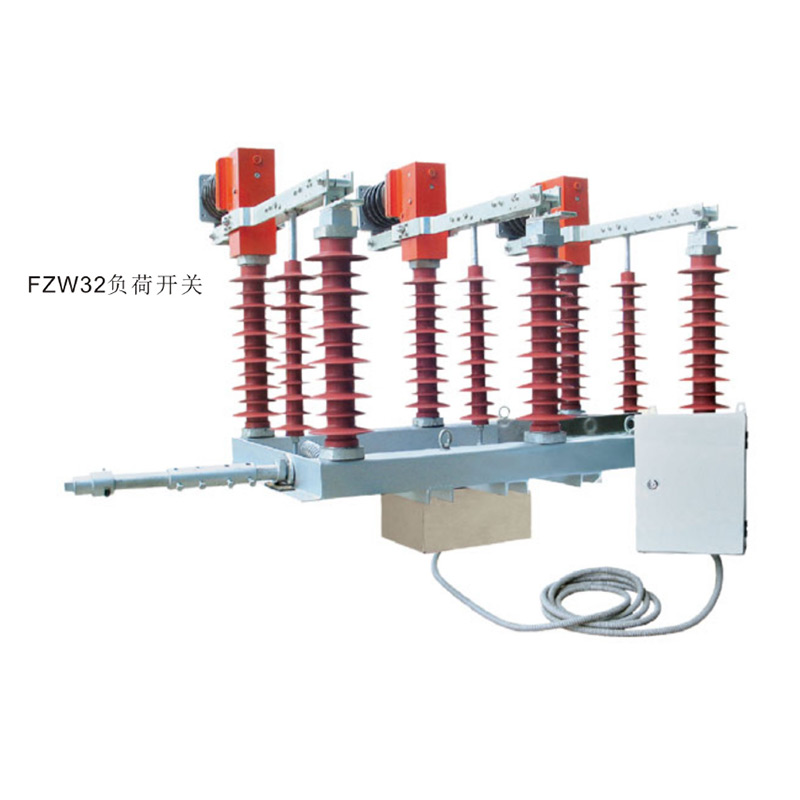

FZW32-12(40.5) Outdoor HV Vacuum Disconnect Load Break Switch

FZW32-12(40.5)/630(1250)-20(25) Outdoor AC high voltage disco nnec t vacuum load breaker switch is a new product adopts domestic existing mature load breaker switch production experience and overseas advanced technology to design and manufacture.

The load breaker switch is composed of disconnect blade, vacuum interrupter and operation mechanism. va cuum extin guish ing a rc, there are merits as strong extinguishing arc ability, reliable performance, long lifetime, small volume, no explosive danger and no pollution to environment.

Ambient condition

  1. Altitude:≤1000m;
  2. Ambient temperature: -30℃~+40℃;
  3. Wind speed: ≤34m/s;
  4. Pollution degree: ≤IV ;
  5. Earthquake intensity:≤8 degree;
  6. Ice thickness:≤10mm.

Model

Technical specification

No.ItemUnitData
1Rated voltagekV1240.5
2Rated currentA6301250
3Rated power frequencyHz50/6050/60
4Rated peak withstand currentkA5063
5Rated short-time withstand currentkA2025
6Rated short-circuit durations44
7Rated active load breaking currentA6301250
8Rated loop breaking currentA6301250
9Rated cable charging currentA1010
105% rated active load breaking currentA31.563
11Rated power transformer breaking currentkVA12501250
12Rated short-circuit making currentkA5063
13Main loop resistance 90100
    14  1min. power frequency withstand voltage  Dryphase to phase phase to earthkV4295
across open contactskV49115
Wetphase to phase phase to earthkV3085
  15Lightning impulse withstand voltage(peak)phase to phase phase to earthkV75185
across open contactskV85215
16Mechanical lifeTimes1000010000
17Three phase closing asynchronousms55

LBS with vacuum arc extinguish chamber

No.ItemUnitData
1Contact distancemm5 118+1
2Average breaking speedm/s1.1 0.21.6 0.2
3Three phase breaking asynchronousms55
4Three phase making asynchronousms55

Structure feature
