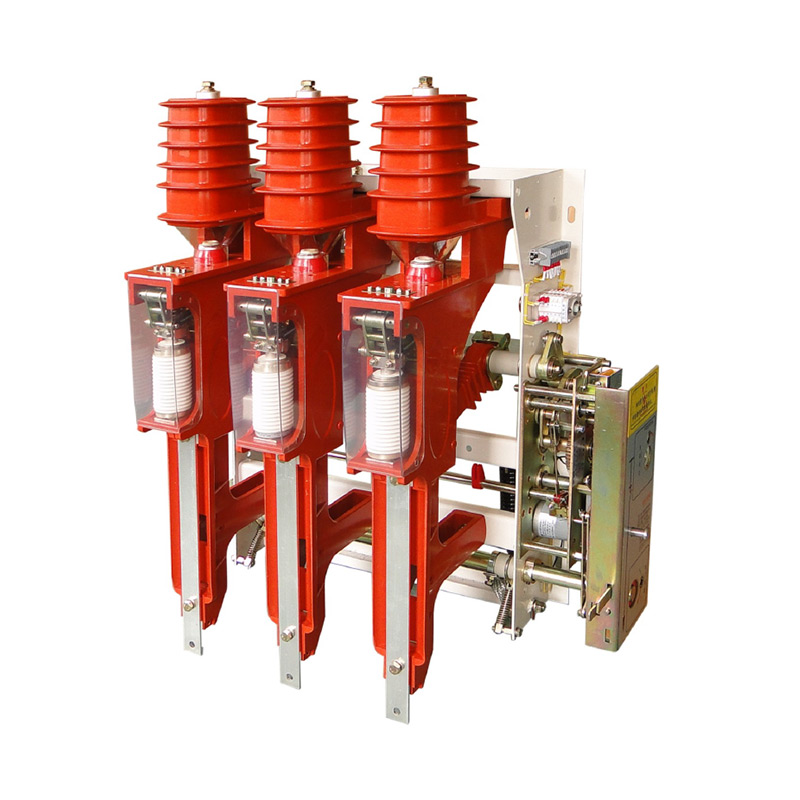

FZN25-12D Indoor AC High Voltage Vacuum Load Break Switch

This product applies vacuum arc-extinguishing chamber. It features with reliable
operation, long electric life and easy maintenance, breaking and making power
supply frequently. The operation mechanism is inside switch gear combining
disconnector, load break switch and earthing switch into one. It has
compactable dimension and small weight.

The disconnect gap lies in a serial with the vacuum arc-extinguishing cham ber.
The large dynamic stable current and thermal st able curre nt, the interlink ed
procedures assure the operation coherently.
Busbar and load break switch are separated fully by taper fixed co ntact,
insulatin g cover and valve .Vacuum circuit break switch, earthing switch, valve
and cubicle door are interlocked according to 5 protections to preven t
from miss- operation. The spring storage operation mechanism can both operate
by dependent manual and power to realize remote control. The CO operating
power can be AC or DC source.
Manual operation is generally on the right of switch, but can be changed to
the left or obverse according to user's requirement.

Request a Quote

Ambient condition

Altitude: ≤1000m;
Ambient temperature: -25℃ ~+40℃ ;
Relative humidity: daily average≤95% , monthly average≤90% ;
Earthquake intensity: ≤8 degree;
Applicable occasions should free from inflammables, explosives,corrosives and severe vibration.

Technical specification

FZN25-12D Vacuum load break switch and FZRN-12D Combination

No.	Item		Unit	FZN25-12D/T630-20	FZRN25-12D/T200-31.5
1	Rated voltage		kV	12
2	Rated current		A	630	200
3	Rated frequency		Hz	50/60
4	Rated insulating level	1min. PF withstand voltage	kV	arcing chamber gaps:30, phase to earth, phase to phase:42, across open contacts:48
5	Rated insulating level	lightning impulse withstand voltage(peak)	kV	phase to phase:75, across open contacts:85
6	Rated short-time withstand current(thermal stable current)		kA	20	–
7	Rated short-circuit duration		s	4	–
8	Rated peak withstand current(dynamic stable current )		kA	50	–
9	Rated active load breaking current		A	630	–
10	Rated breaking current of closed-loop		A	630	–
11	Rated breaking current of charging cable		A	10	–
12	Rated breaking no-load transformer capacity		kVA	1600
13	Rated short-circuit breaking current		kA	–	31.5
14	Rated transfer current		A	–	2000
15	Fuse model			–	SDLAJ-12 SFLAJ-12
16	Output power of impinger		J	–	2-5
17	Rated short-circuit making current		kA	50	–
18	Rated short-time withstand current of earthing switch(thermal stable current)		kA	20
19	Rated short-circuit duration of earthing switch		s	2
20	Rated voltage of auxiliary loop		V	220, 110
21	Mechanical life		Times	10000

Mechanical specification of FZN25-12D and FZRN25-12D

No.	Item	Unit	FZN25-12D/T630-20	FZRN25-12D/T200-31.5
1	Clearance between electrified parts/ to earth	mm	125
2	The thickness of conducting tube inject into fixed contacting base	mm	18
3	Clearance between fixed and moving contact	mm	6+1 0
4	Spring decrement under contact pressrue	mm	2+1 0
5	Average closing speed of arc-extinguishing chamber	m/s	0.9 0.2
6	Average opening speed of arc-extinguishing chamber	m/s	0.6 0.2
7	Opening sping time	ms	2
8	Three poles C/O asynchronous	ms	3
9	Main circuit resistance		150	300
10	Maximum moment of manual operation	N m	160
11	Opening time actuated by fuse	ms	–	30-40
12	Opening time actuated by release	ms	40-45
