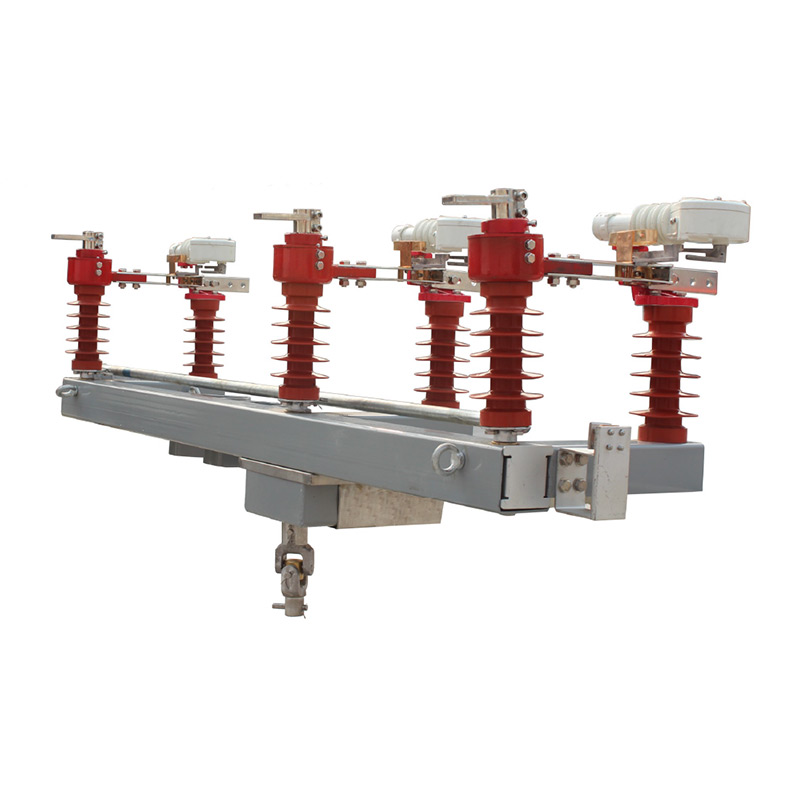

Ambient condition
- Altitude:≤3000m;
- Ambient temperature: -25℃~+40℃ ;
- Wind speed:≤35m/s;
- Pollution degree:≤IV ;
- Earthquake intensity:≤8 degree;
- Ice thickness:≤10mm.
Model
Technical specification
No. | Item | Unit | Data | ||
1 | Rated voltage | kV | 12 | ||
2 | Rated current | A | 630 | ||
3 | Rated power frequency | Hz | 50/60 | ||
4 | Rated peak withstand current | kA | 50 | ||
5 | Rated short-time withstand current | kA | 20 | ||
6 | Rated short-circuit duration | s | 4 | ||
7 | Rated active load breaking current | A | 630 | ||
8 | Rated loop breaking current | A | 630 | ||
9 | Rated cable charging current | A | 10 | ||
10 | 5% rated active load breaking current | A | 31.5 | ||
11 | Rated power transformer breaking current | A | 1250 | ||
12 | Rated short-circuit making current | kA | 50 | ||
13 | Main loop resistance | 90 | |||
14 | 1min power frequency withstand voltage | Dry | phase to phase, to earth | kV | 42 |
across open contacts | 49 | ||||
Wet | phase to phase, to earth | 30 | |||
15 | Lightning impulse withstand voltage(peak) | phase to phase, to earth | kV | 75 | |
across open contacts | 85 | ||||
16 | Mechanical life | Times | 2000 |
17 | Three phase O/C asynchronous | ms | 5 | ||
18 | Voltage, power of motor | V | W | 220 | 200 |
19 | Closing direction deflexion of blade | mm | 2 | ||
20 | Main blade pressure | N | 420 42 | ||
21 | Blade opening distance | mm | 200 | ||
22 | Rated operating moment | Nm | 300 |
Sheet 2 (rated votlage 40.5kV)
No. | Item | Unit | Data | ||||
1 | Rated voltage | kV | 40.5 | ||||
2 | Rated current | A | 630 | ||||
3 | Rated power frequency | Hz | 50/60 | ||||
4 | Rated peak withstand current | kA | 50 | ||||
5 | Rated short-time withstand current | kA | 20 | ||||
6 | Rated short-circuit duration | s | 4 | ||||
7 | Rated active load breaking current | A | 630 | ||||
8 | Rated loop breaking current | A | 630 | ||||
9 | Rated cable charging current | A | 10 | ||||
10 | 5% rated active load breaking current | A | 31.5 | ||||
11 | Rated power transformer breaking current | A | 1250 | ||||
12 | Rated short-circuit making current | kA | 50 | ||||
13 | Main loop resistance | 95 | |||||
14 | 1min power frequency withstand voltage | Dry | phase to phase, to earth | kV | 95 | ||
across open contacts | kV | 115 | |||||
Wet | phase to phase, to earth | kV | 85 | ||||
15 | Lightning impulse withstand voltage | phase to phase, to earth | kV | 185 | |||
across open contacts | kV | 215 | |||||
16 | Mechanical life | Times | 2000 | ||||
17 | Three phase making and breaking asynchronous | ms | 5 | ||||
18 | Voltage and power of motor | V | W | 220 | 200 | ||
19 | Position deflexion of closing blade | mm | 2 | ||||
20 | Main blade pressure | N | 420 42 | ||||
21 | Blade distance | mm | 360 | ||||
22 | Rated operating moment | Nm | 300 |
