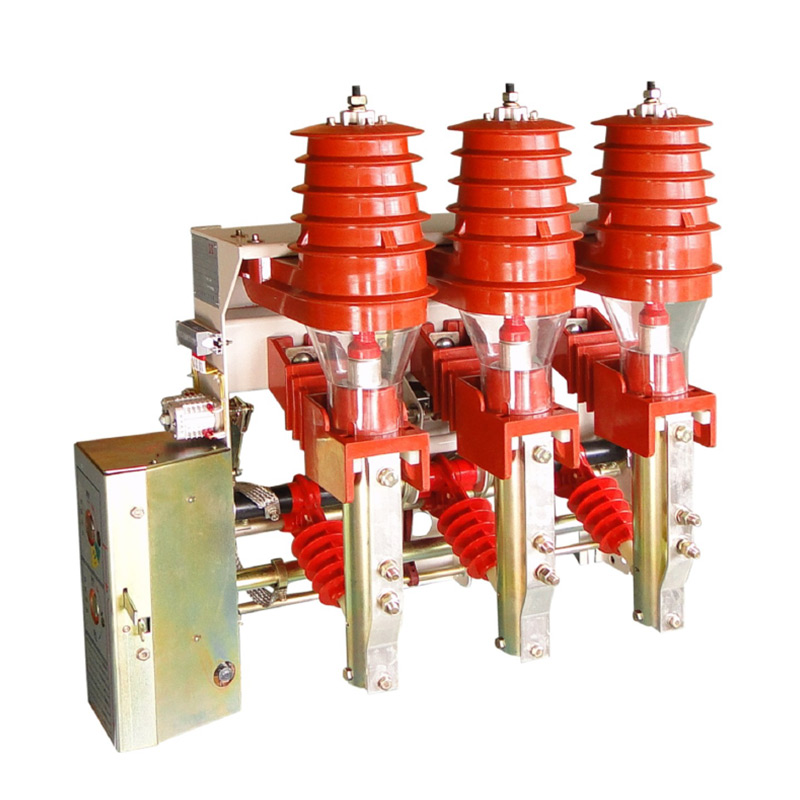

FKN12-12D Load Break Switch FKRN12-12D Load break Switch and Fuse Combination Apparatus

FKN12-12D series air-blast load break switch and FKRN12 -12D s eries air- blast load break switch and fuse combination apparatus are new series s wit chge ar applies to three- phase electric distributi on system of rated 12kV, acting as protecting and control apparatus for transformers, cable and over head wir ing. These series are especially applicable in rural, urban terminal substation and prefabricated substations, as well as ring network power supply.

These series products feature with impa ct str ucture, ae sthet ic ap peara nce, reliable interlock and high insulting level. In the spring storage operation mechanism, CO speed is free from the influence of the manpower. For the arc- extinguish, electric arc- extinguish inside the insulating cover, the free gas occurs at sparking do not cause descend of insulating lev el betwee n phases and phase to earth. The insulation cover clapboard s eparates electr ified part thus boost protection grade of ring main unit. The copper-tungsten contact and main contact brings along reliable conductivity and long life. This product achieves sound fame due to the easy maintenance and operation as well as reliable performance.

Ambient condition

  1. Altitude: ≤1000m;
  2. Ambient temperature: -25℃ ~+40℃ ;
  3. Relative humidity: daily average ≤95% , monthly average ≤90% ;
  4. Earthquake intensity: ≤8 degree;
  5. Pollution degree:‖ ;
  6. Applicable occasions should free from inflammables, explosives, corrosives and severe vibration.

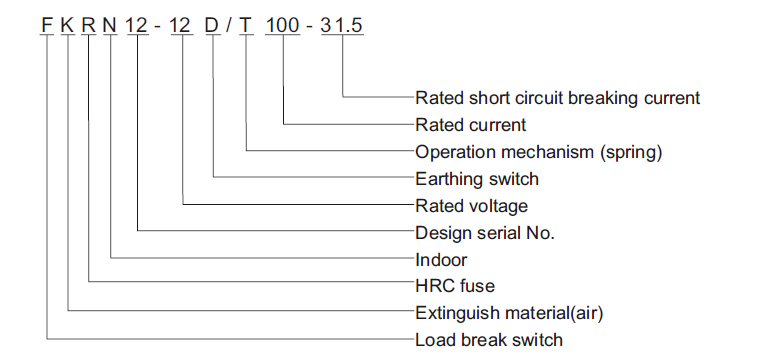

Model

Product feature

These series products feature with compact dimension, well design, reliable interlock and high insulating level. In the spring
storage operation mechanism, C/O speed is out of manpower influence. For the arc-extinguishing, electric arc extinguish
inside the insulating cover, the free gas occurs do not cause decrease of insulation level between phases and phase to ground.
The clapboard of insulation cover separates electrified part thus advances protection grade of ring main unit. The copper-tu ngsten
contact and main contact bring along reliable conductivity and long life. This product achieves sound fame due to the e asy
maintenance and operation as well as reliable performance.

Technical specification

No.ItemUnitFKN12-12DFKRN12-12D(HRC fuse)
1Rated voltagekV1212
2Rated power frequencyHz50/6050/60
3Rated currentA6301250
41min. PF withstand voltage(phase to earth, phase to phase)kV4242
51min. PF withstand voltage(across open contacts)kV4848
6Lightning impulse withstand voltage(phase to earth, phase to phase)kV7575
7Lightning impulse withstand voltage(across open contacts)kV8585
8Rated short-time withstand current (thermal steadily)-LBSkA20
9Rated short-time withstand current(thermal steadily)-earthing switchkA20
10Rated short-circuit duration(thermal steadily time)-LBSs4
11Rated short-circuit duration(thermal steadily time)-earthing switchs2
12Rated short-circuit making current(peak)kA50
13Rated breaking current active load breaking currentA630
14Rated breaking current loop breaking currentA630
155% of rated active load breaking currentA31.5
16Rated breaking current cable charging currentA10
17Rated breaking current no-load transformer capacitykVA1250
18Rated short-circuit breaking current(fuse)kA 31.5
19Rated transfer currentA 1200
20Mechanical lifeTimes20002000

Mechanical performance

No.ItemUnitData
1Distance of open contactsmm175
2Middle distance of polesmm210  2
3air clearance of polesmm125
4Travelmm210  4
5Over-travelmm40
6Three pole making asynchronousms10
7Three pole breaking asynchronousms5
8Release tripper breaking timems40~65
9Main circuit resistance 130

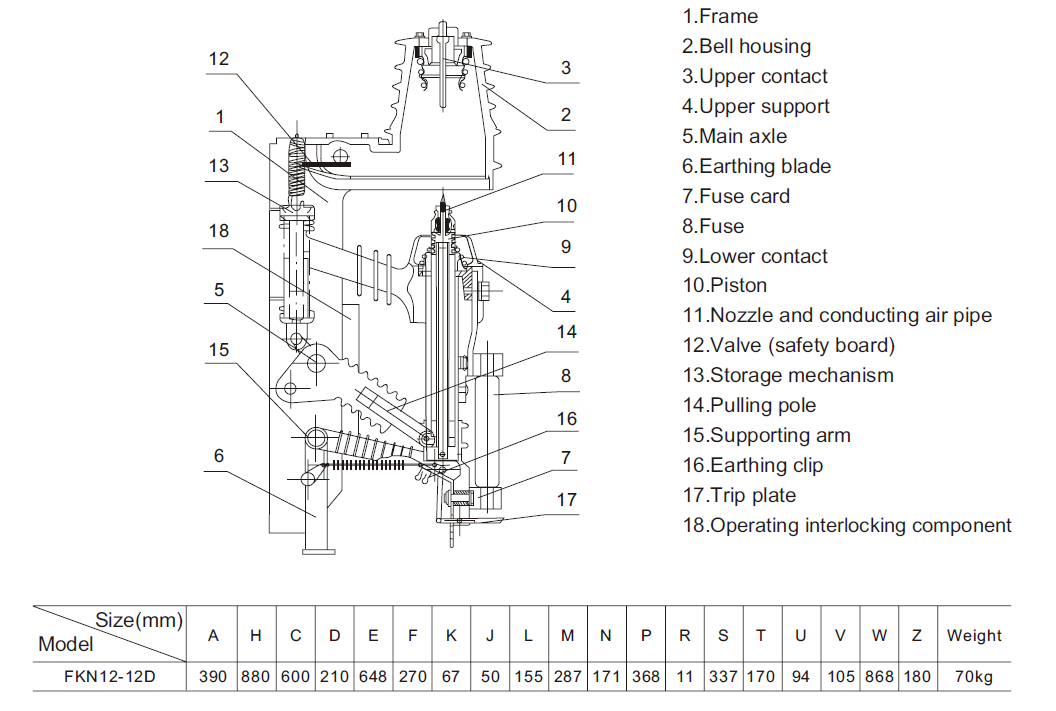

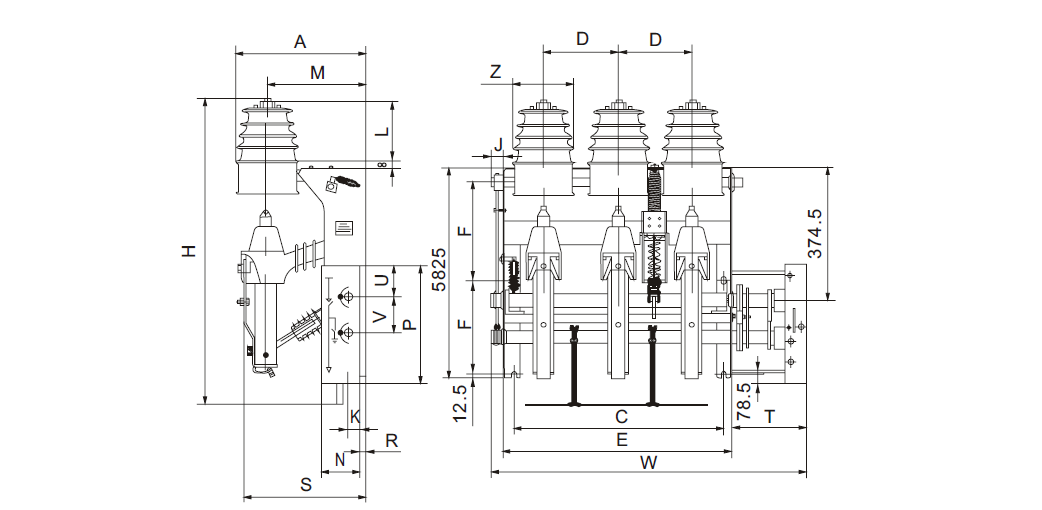

Outline Dimension
